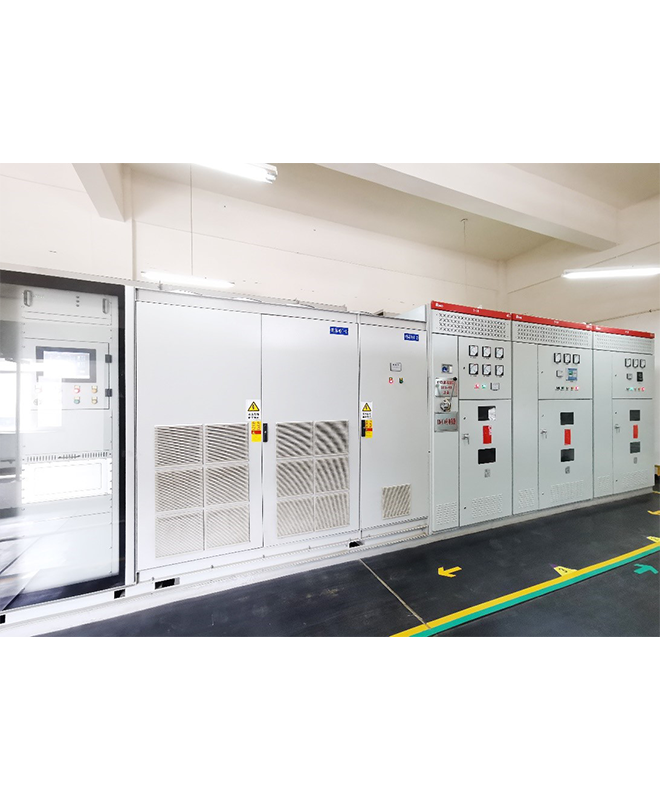

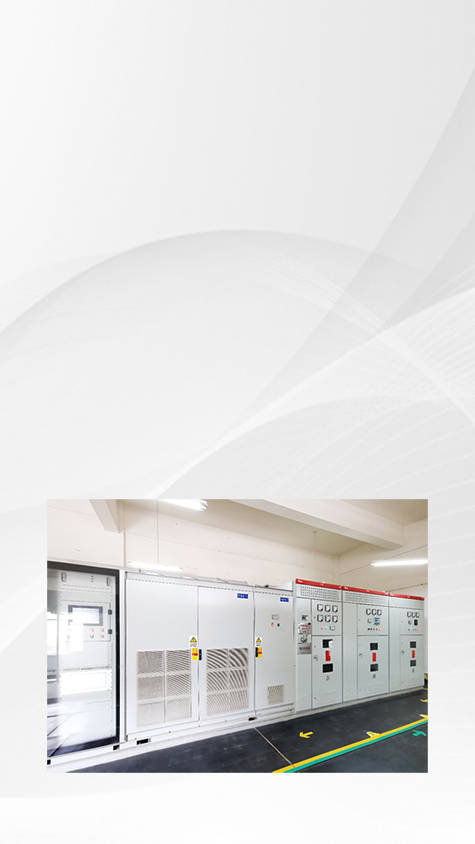

BW-HAPF/BW-HSVG系列
降壓式高壓補償濾波裝置
通過升壓變壓器、隔離開關與高壓母線連接起來
通過升壓變壓器、隔離開關與高壓母線連接起來

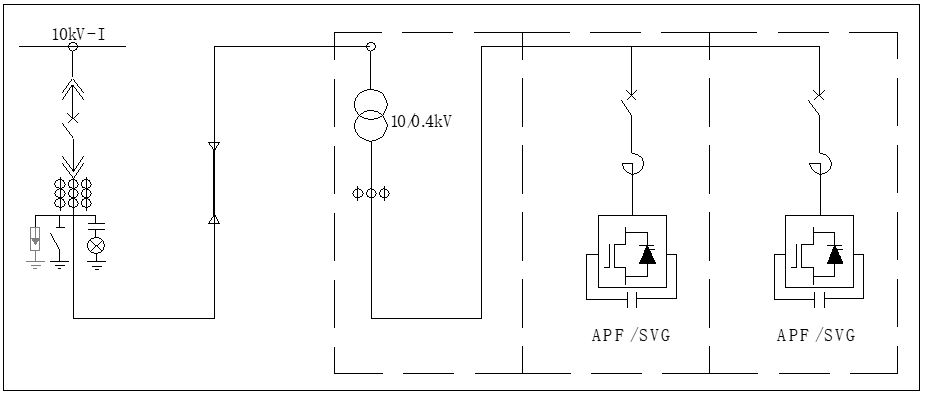

降壓式是相對于直掛式而言的，主要區別在于中間環節。整機通過連接電抗器、隔離開關與高壓母線系統側連接起來的為直掛機型。通過升壓變壓器、隔離開關與高壓母線連接起來的為降壓機型。系統如圖所示。
| 型號 | 濾波電流 (A) | 電壓等級 (kV) | 柜體尺寸 寬×深×高 |
| BW-HAPF-10/0.4-50 | 50 | 10 | 2200×1000×2200 |
| BW-HAPF-10/0.4-100 | 100 | 10 | 2200×1000×2200 |
| BW-HAPF-10/0.4-200 | 200 | 10 | 2400×1200×2200 |
| BW-HAPF-10/0.4-300 | 300 | 10 | 2600×1200×2200 |
| BW-HAPF-10/0.4-400 | 400 | 10 | 2600×1400×2200 |
| BW-HAPF-10/0.4-500 | 500 | 10 | 2600×1400×2200 |
| BW-HAPF-10/0.4-600 | 600 | 10 | 2800×1400×2200 |
| BW-HAPF-10/0.4-700 | 700 | 10 | 2800×1400×2200 |
| BW-HAPF-10/0.4-800 | 800 | 10 | 2800×1400×2200 |
| BW-HAPF-10/0.4-900 | 900 | 10 | 2800×1400×2200 |
| BW-HAPF-10/0.4-1000 | 1000 | 10 | 2800×1400×2200 |
| BW-HAPF-6/0.4-50 | 50 | 6 | 2200×1000×2200 |
| BW-HAPF-6/0.4-100 | 100 | 6 | 2200×1000×2200 |
| BW-HAPF-6/0.4-200 | 200 | 6 | 2400×1200×2200 |
| BW-HAPF-6/0.4-300 | 300 | 6 | 2600×1200×2200 |
| BW-HAPF-6/0.4-400 | 400 | 6 | 2600×1400×2200 |
| BW-HAPF-6/0.4-500 | 500 | 6 | 2600×1400×2200 |
| BW-HAPF-6/0.4-600 | 600 | 6 | 2800×1400×2200 |
| BW-HAPF-6/0.4-700 | 700 | 6 | 2800×1400×2200 |
| BW-HAPF-6/0.4-800 | 800 | 6 | 2800×1400×2200 |
| BW-HAPF-6/0.4-900 | 900 | 6 | 2800×1400×2200 |
| BW-HAPF-6/0.4-1000 | 1000 | 6 | 2800×1400×2200 |
| 型號 | 補償容量 (kvar) | 電壓等級 (kV) | 柜體尺寸 寬×深×高 |
| BW-HSVG-10/0.4-50 | 50 | 10 | 2200×1000×2200 |
| BW-HSVG-10/0.4-100 | 100 | 10 | 2200×1000×2200 |
| BW-HSVG-10/0.4-200 | 200 | 10 | 2400×1200×2200 |
| BW-HSVG-10/0.4-300 | 300 | 10 | 2600×1200×2200 |
| BW-HSVG-10/0.4-400 | 400 | 10 | 2600×1400×2200 |
| BW-HSVG-10/0.4-500 | 500 | 10 | 2600×1400×2200 |
| BW-HSVG-10/0.4-600 | 600 | 10 | 2800×1400×2200 |
| BW-HSVG-10/0.4-700 | 700 | 10 | 2800×1400×2200 |
| BW-HSVG-10/0.4-800 | 800 | 10 | 2800×1400×2200 |
| BW-HSVG-10/0.4-900 | 900 | 10 | 2800×1400×2200 |
| BW-HSVG-10/0.4-1000 | 1000 | 10 | 2800×1400×2200 |
| BW-HSVG-6/0.4-50 | 50 | 6 | 2200×1000×2200 |
| BW-HSVG-6/0.4-100 | 100 | 6 | 2200×1000×2200 |
| BW-HSVG-6/0.4-200 | 200 | 6 | 2400×1200×2200 |
| BW-HSVG-6/0.4-300 | 300 | 6 | 2600×1200×2200 |
| BW-HSVG-6/0.4-400 | 400 | 6 | 2600×1400×2200 |
| BW-HSVG-6/0.4-500 | 500 | 6 | 2600×1400×2200 |
| BW-HSVG-6/0.4-600 | 600 | 6 | 2800×1400×2200 |
| BW-HSVG-6/0.4-700 | 700 | 6 | 2800×1400×2200 |
| BW-HSVG-6/0.4-800 | 800 | 6 | 2800×1400×2200 |
| BW-HSVG-6/0.4-900 | 900 | 6 | 2800×1400×2200 |
| BW-HSVG-6/0.4-1000 | 1000 | 6 | 2800×1400×2200 |
